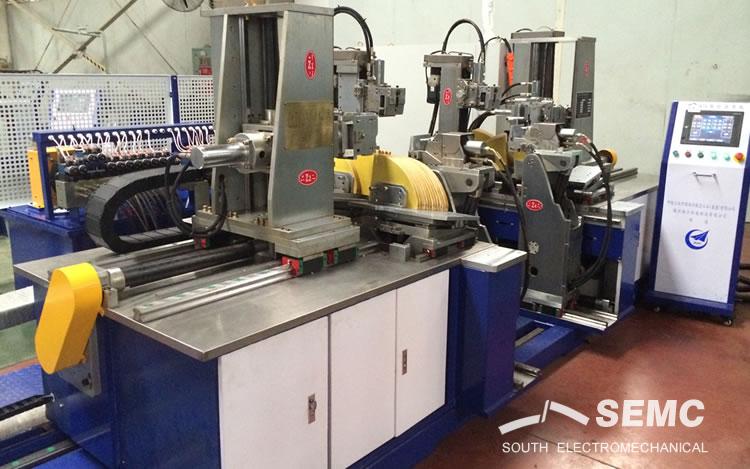

SKZX Full Servo CNC Coil Spreading Machine


SKZX□□□×□□□Full servo CNC Spreading Machines are the third generation of coil spreading machines newly developed by our company. They are with higher precision, faster speed, better coil forming and more convenience comparing to our second generation spreading machines. A number of independently-developed proprietary technologies of our company have been used. Control of parameters such as the coil length, end height, coil span and angle are controlled accurately by servo motor. This machine has been granted a Certificate of Utility Model Patent by the State Intellectual Property Office. Blanks in the types represent the shuttle length and the coil span.

The machine mainly consists of stationary body, moving body, guide rail, hydraulic station, digital control & detection system and 4 spreading arms.

To start operation, place the coil onto the machine, press START, the coil will be straightened and centered quickly. Next, the manipulators on 4 spreading arms grasp respectively the straight edge part of the coil; during spreading, 4 spreading arms go outwards and the end nose go up and inwards, the manipulators rotate and finish the movement to form the coil to the right span, length, end height and angle.

After the forming movement, the add-on lower arc push up unit moves upwards and inwards to form coil arc.

Upon completion of coil spreading, the manipulators get released, unload the coilreset the machine and proceed with the next coil.


Item

Paras. (before spreading)


model: SKZX250*90 as example

coil total length L1 range

450~2700mm

coil bobbin distance L2 range

350~2500mm

coil nose inner circle radius/mm

R10,R15,R20,R25

coil section width A range /mm

5~28mm

coil section height B range /mm

20~70mm


Item

Paras.(after spreading)


model: SKZX250*90 as example

3D coil straight line length L3 range

230~1700mm

3D coil total length L4 range

350~2500mm

3D coil total width(span)W range

50~900mm

3D coil nose up H range

-20~400mm

3D coil nose deflection angle θ1 range

0~35°

angelθ2 range between 3D coil upper edge and center line

0~75°

angelθ3 range between 3D coil lower edge and center line

0~75°

3D coil nose to straight end length range

70~550mm

3D coil nose R range /mm

R10,R15,R20,R25

3D coil end arc radius R3/mm

R15,R25

3D coil straight edge and bevel arc radius R4/mm

R25/R30,R40/R50

3D bevel slot coil angle range

0~7°

3D coil up&down layer straight edge unequal length range/mm

±20mm
